Toshiba Satellite 1805

Toshiba Satellite 1805. How to remove and clean CPU cooling fan.



Click on any picture to enlarge.


Remove keyboard strip

STEP 1

Insert a thin object under the securing strip and lift it up.


Replace keyboard

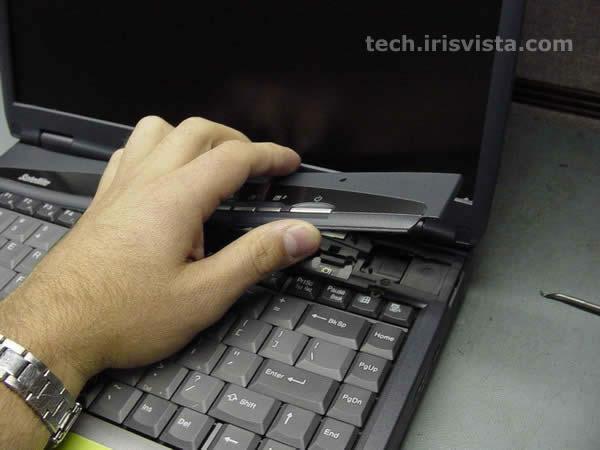

STEP 2

Be careful, it may be very tight.


Take apart laptop

STEP 3

Remove the securing strip.


Remove laptop keyboard

STEP 4

Remove two screws securing the keyboard.


Remove laptop fan

STEP 5

Remove four screws securing the fan shield.
Lift the shield off the CPU.


Remove notebook fan

STEP 6

Remove four screws securing the fan.




Remove CPU cooling fan

STEP 7

Lift the cooling can off the CPU.
Disconnect the fan cable on the system board.
Remove the cooling fan and clean it.


Replace CPU

STEP 8

Remove the old silicone grease on the processor.
Reapply the silicone grease.

DONE!
Do not forget to assemble it back! :)
