Toshiba Satellite A215 laptop. Removing wireless card.
A few things to know before you start taking your laptop apart
 Click on any picture to enlarge.
|
Laptop Parts Expert
Parts for Toshiba, IBM, HP, Compaq, Dell and other brands.
Free ground shipping on all orders over $79
|
|
| |
|
 |
STEP 1

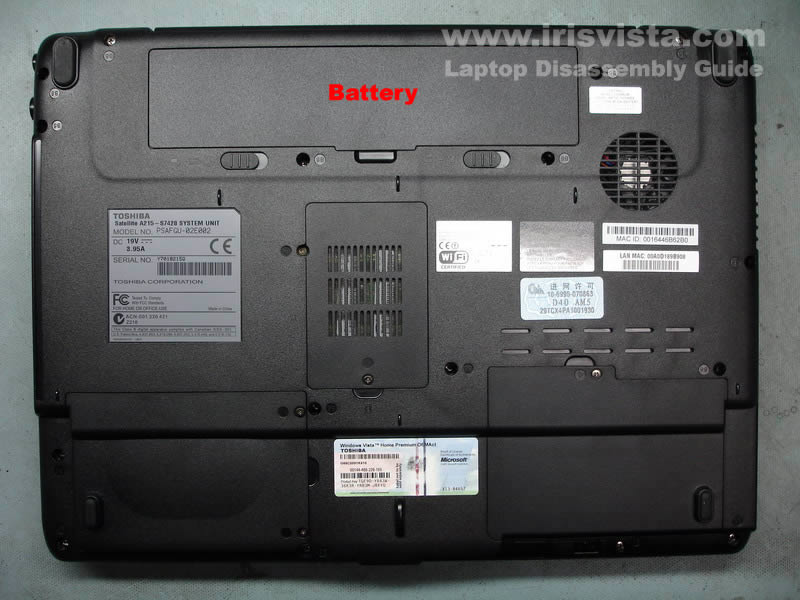

Start laptop disassembly with removing the battery. |
| |
|
 |
STEP 2
Remove four screws marked with red circles.
|
| |
|
 |
STEP 3
Insert your fingers between the keyboard base and laptop base. Carefully lift up the keyboard bezel. |
| |
|
 |
STEP 4
Continue removing the bezel.
|
| |
|
 |
STEP 5
Remove two screws securing the laptop keyboard. |
| |
|
 |
STEP 6
Lift up the keyboard and put it on the top cover so you can access the connector.
If you are replacing the keyboard you'll have to unlock the connector before you pull the cable. |
| |
|
 |
STEP 7
Turn the keyboard over and place it on the palm rest.
Unplug two antenna cables from the wireless card.
White cable - main connector. Black cable - auxiliary connector.
Remove two screws securing the wireless card.
|
| |
|
 |
STEP 8
Remove the wireless card from the slot on the motherboard. |
| |
|
 |
|
